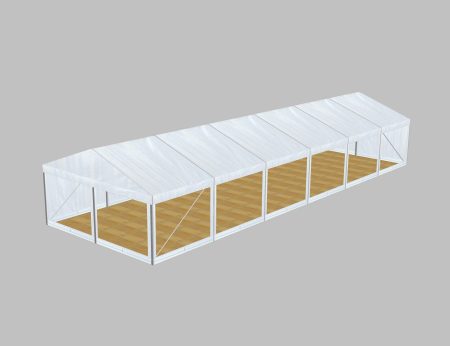

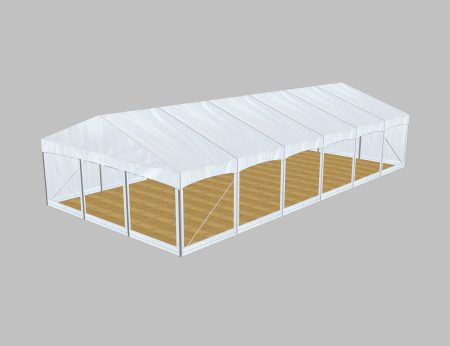

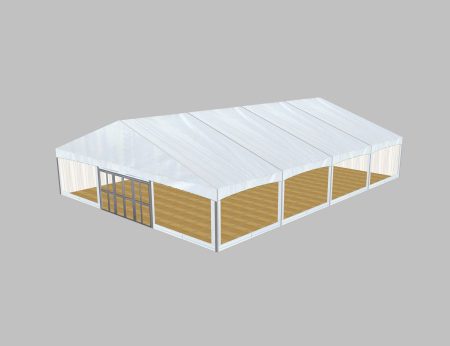

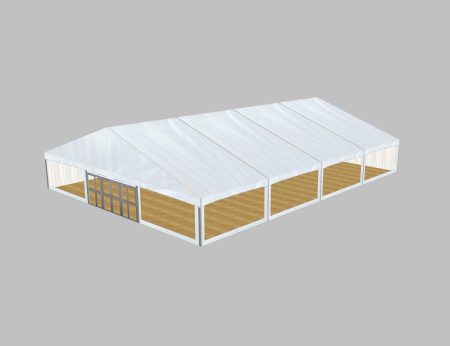

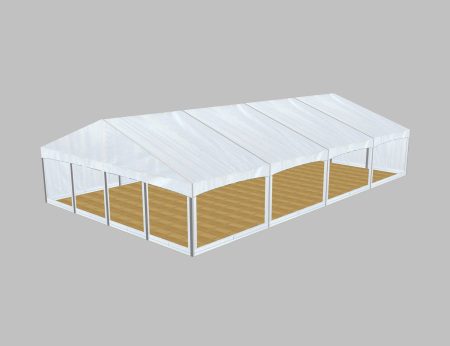

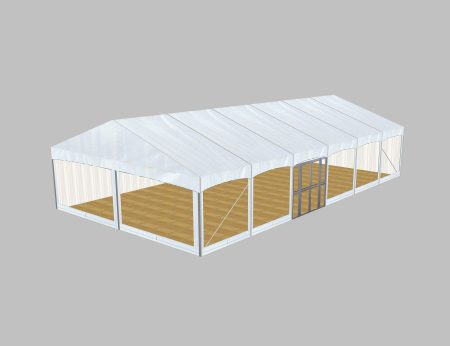

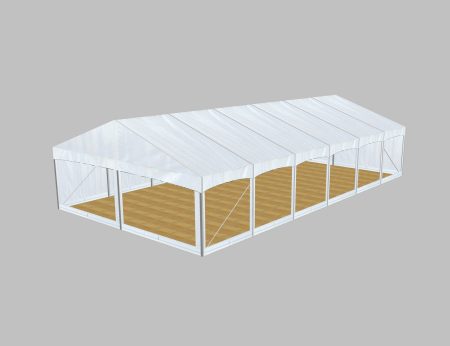

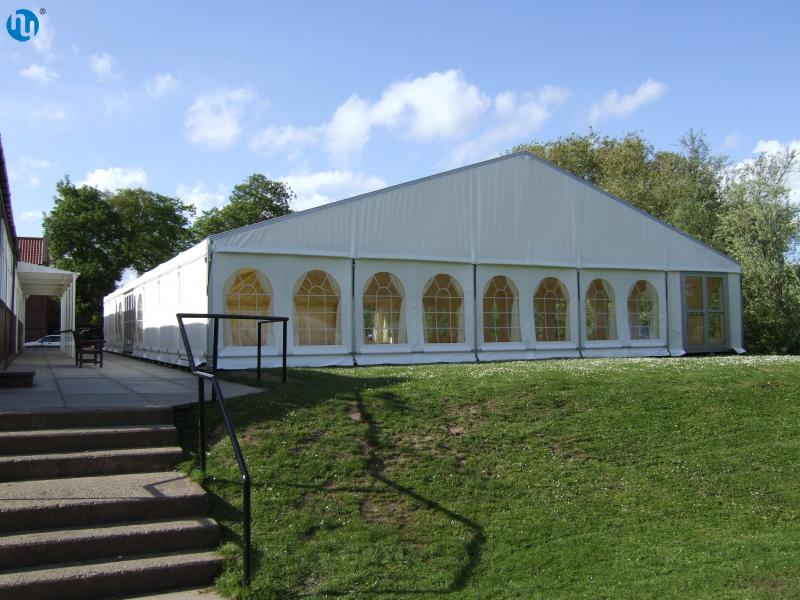

Hoecker marquees are fast to assemble, the connections for the aluminium roof spans are push fit design from galvanised steel then locked by pin and clip, forming a modular design. The Event system is in 3m or 5m modules. The basic unit length being either 6m or 10m, and can be extended from that in further matching modules to form the required length.
Extra sections can be added in this way to all our Models, giving flexibility and choice. Structures exceeding 24m in length will require additional wind bracing, the maximum spacing between wind bracing is 6 bays.
The marquee can be erected direct to the ground on steel foot plates, or if required can be mounted directly to the Hoecker floor system. Structures are supplied with anchoring stakes, but varying ground conditions may affect anchoring calculations.
The marquee can be supplied with tested structural calculations. According to structural calculations it is stable in structure to BS6399 pt2 (Wind) & BSEN 1999 Eurocode 9. Design of aluminium structures.
The Hoecker marquee is designed to be assembled on the ground, then hinged into it's vertical position in the system and fixed in place, preventing any need for potentially dangerous temporary ties or roof work.
The aluminium rafters and side uprights have keder tracks for the PVC sheet keder edges to slide into. This forms the secure and watertight join between frame and cover which makes the structure modular, and allows control of the cover when working in windy conditions.
PVC Side walls are fitted into the side upright keder tracks, slot into a tracked eave purlin and are centre-laced to allow entrance in any wall. Roof covers are tensioned by bar and ratchet strap tension system.
All PVC covers are Fire retardant to relevant BS, DIN & M2 standards, UV resistant, mould inhibited and lacquered.
The standard colour for PVC covers is white, but you can choose from a range of striped or solid colours for the side walls and valances.These structures are calculated for 70mph winds and snow loading of 0.2kn m2. Snow must be cleared from the roof regularly or a constant temperature of 12°C maintained.
