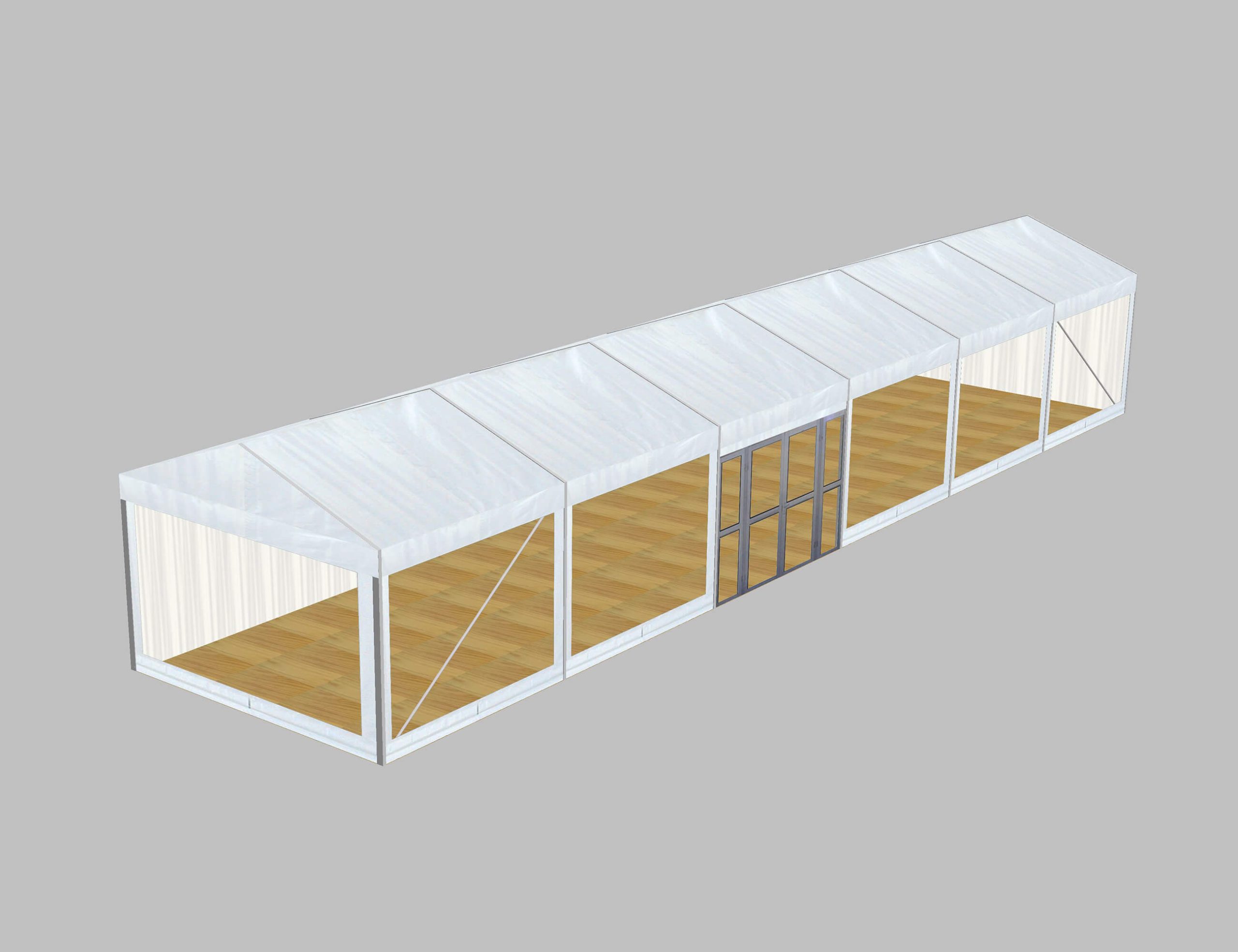

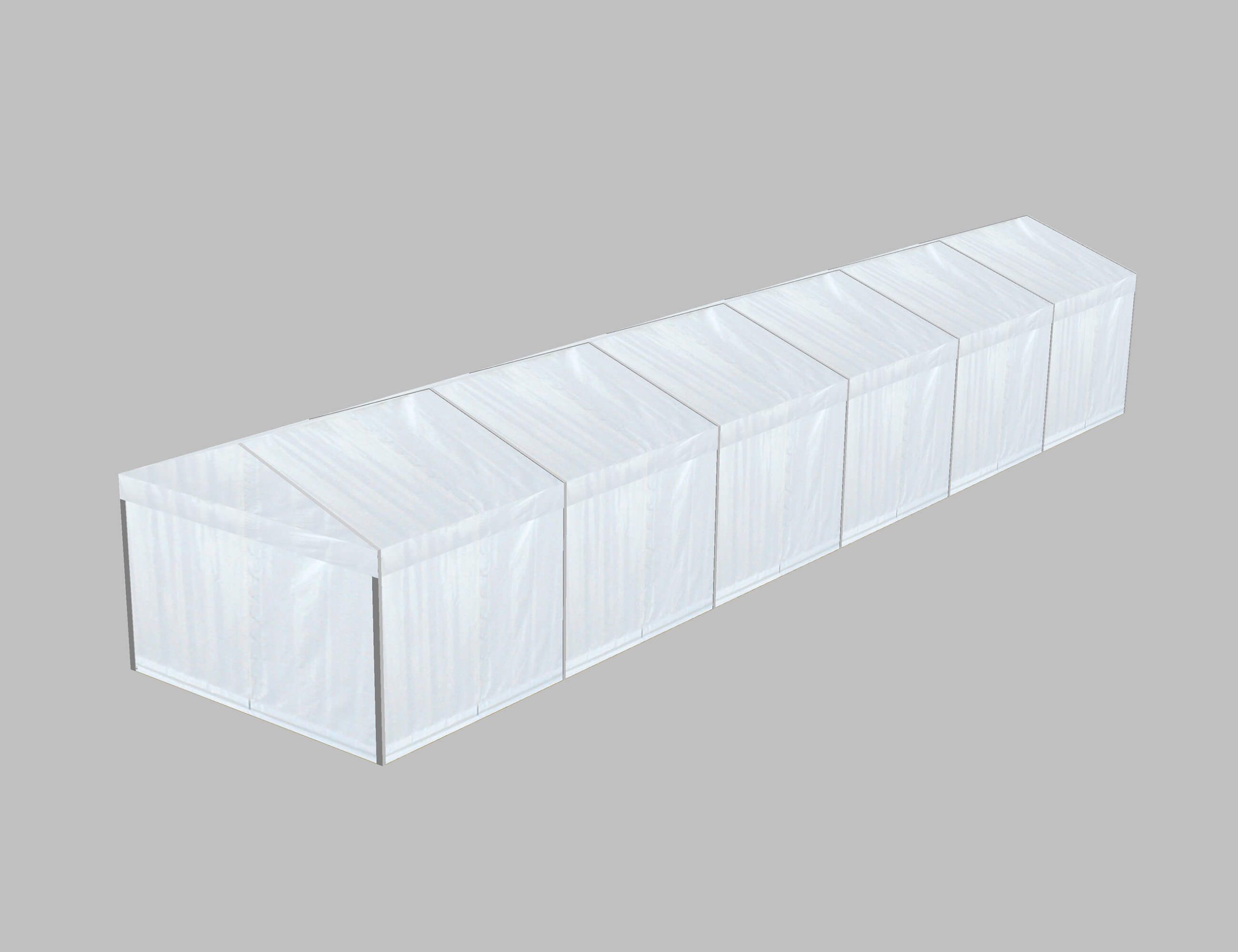

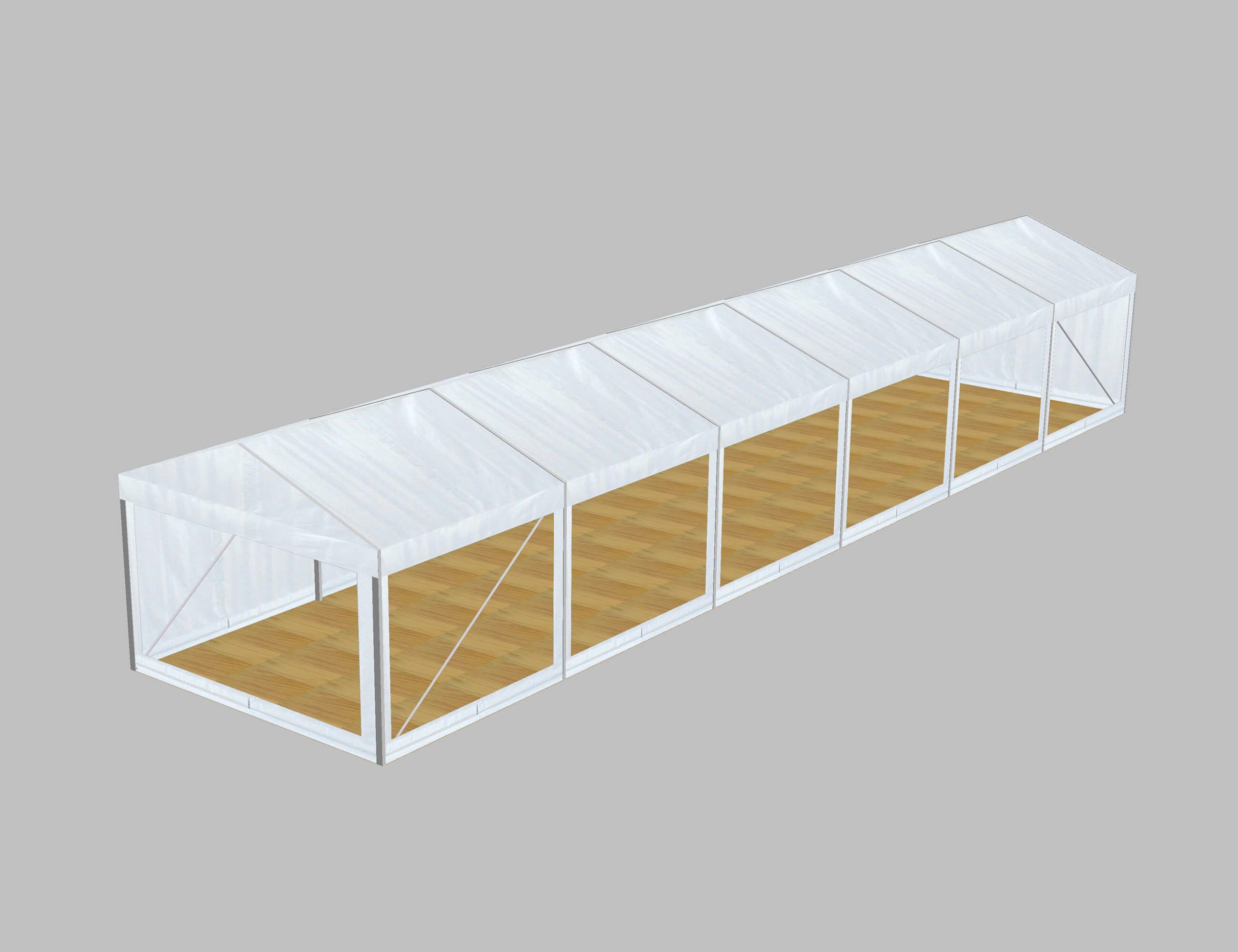

Model: P4 Span Party 2.4m Side Height

Enquire
Short Description

The main structure of the marquee is created by rafters and side uprights formed from extruded anodised aluminium profiles. These components are connected by heavy duty hot dipped galvanised steel inserts allowing fast assembly with pins and clips.

Dimensions (mm)
Span Width
4000mm
Eave Height
2400mm
Ridge Height
3144mm
Length
13 cm
Width
58 cm
Height
52 cm
Buy It Now

Full Description

The main structure of the marquee is created by rafters and side uprights formed from extruded anodised aluminium profiles. These components are connected by heavy duty hot dipped galvanised steel inserts allowing fast assembly with pins and clips.

The basic unit is two bays (6m) in length and has two wind brace bays, the modular design allows additional 3m bays to be added at any time to achieve the desired length. At 27m in length an additional wind brace bay is required. Maximum spacing allowed between braced bays is 6 unbraced bays.

The marquee framework can be erected direct to the ground with the steel base plates and stakes supplied or alternatively fixed to the optional hoecker flooring systems. The anchoring method depends upon structural calculations. The structure is assembled on the ground, each frame hinges into place and fixed upright, so no dangerous roof work is involved!

The rafters and uprights have keder tracks for the PVC roof and wall cover keder edges to be inserted, thus resulting in a very tight and secure join between the framework and the PVC sheet.

Walls: Keder edges, rings at top edge for wall hanging bars, laced at centre, with tie-back cords for when left open. White as standard, other colours available upon request.

The marquee can be supplied with tested structural calculations. According to structural calculations it is stable in structure to

BS EN 1991-1-4:200+A1:2010 [wind], BS EN 13782:2015, Temporary Structures, – Tents Safety and BS EN 1999 Eurocode 9. Design of
Aluminium Structures

Snow must be cleared from the roof regularly or a constant temperature of 12 degrees C must be maintained at the ridge point.

Specification

Please find the technical specification details below

Span Width
4000mm
Eave Height
2400mm
Ridge Height
3144mm
Longest Component
3800mm (Diagonal Bar)
Roof Pitch
20°
Aluminium Profile
48mm x 89mm 2 track / 48mm x 110mm 4 track
Wind Speed Rating
60mph, 27 m/s, 97km/h
Snow Loading
0.2kn m2 Not including internal hanging loads
Purlin Profile
60mm x 60mm
Steel Spec.
Hot Dip Galvanised Steel Inserts
Bay Spacing
3m
Frame Bracing
Diagonal Bar or Portal Brace
Ground Fixing
850mm Stakes, Anchor Bolts, Weights
Structural Calculations

BS EN 1999 Eurocode 9
BS EN 1991-1-4:200+A1:2010 [wind]
BS EN 13782:2015

PVC Specification

PVC Spec
650g m2, Anti Mould, Low Wick, UV Resistant
Fire Rating
BS, DIN & M2 Standard
Colour
White as standard, others available upon request
Roof Options
Plain White, Clear
Gable Options
Plain White (one piece), Clear (one piece)
Wall Options
One Piece, Centre Laced, Windowed, Panoramic
Tensioning
Elasticated rope to the eave purlins

Weights

2 Bay Frame (6m)
262kg
2 Bays PVC (6m)
89kg
Extension Bay Frame
74kg
Extension Bay PVC
30kg
Volume 2 bays
0.3m3
Volume ext. bay
0.1m3
*All dimensions, weights and transport volume given are approximate!
