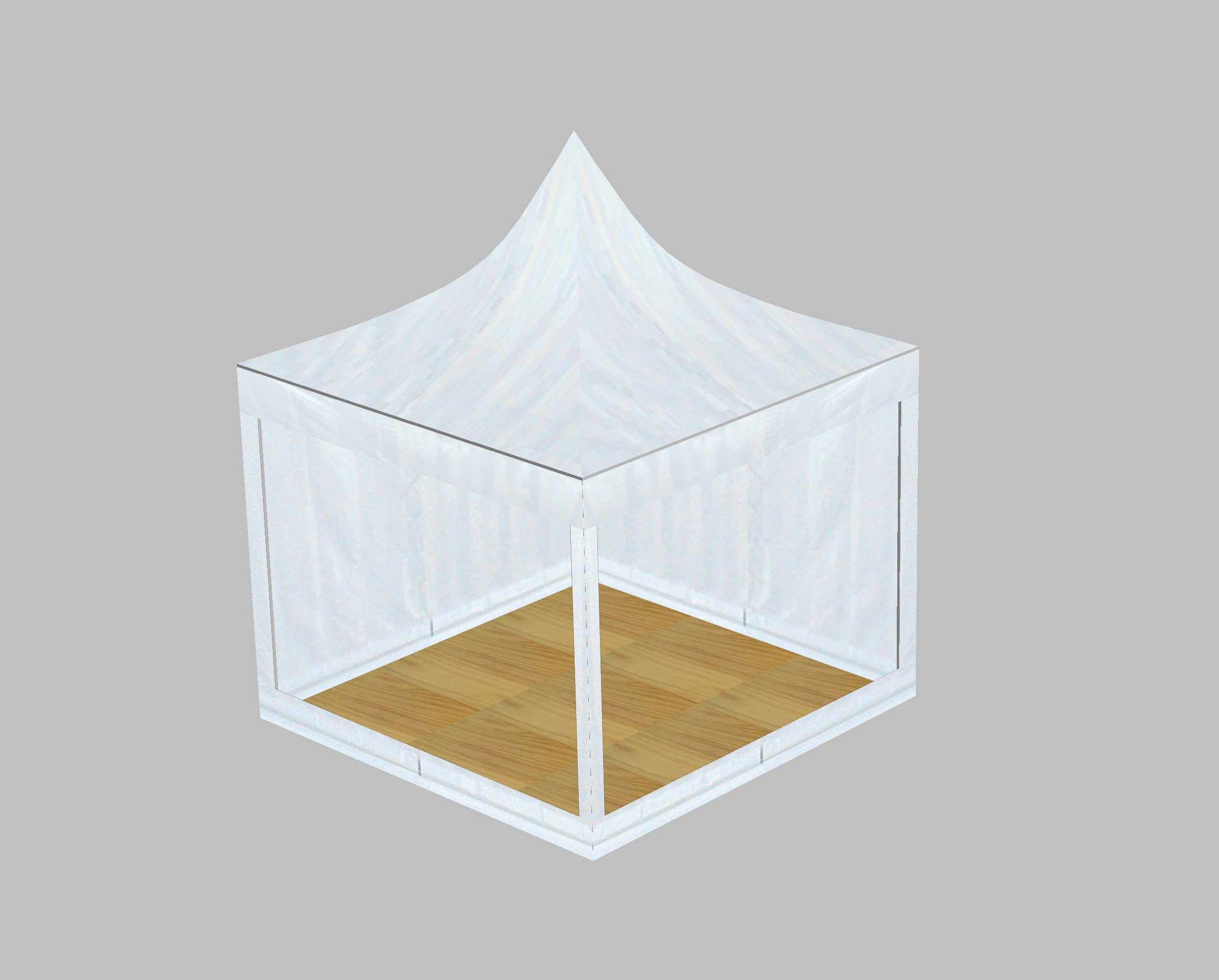

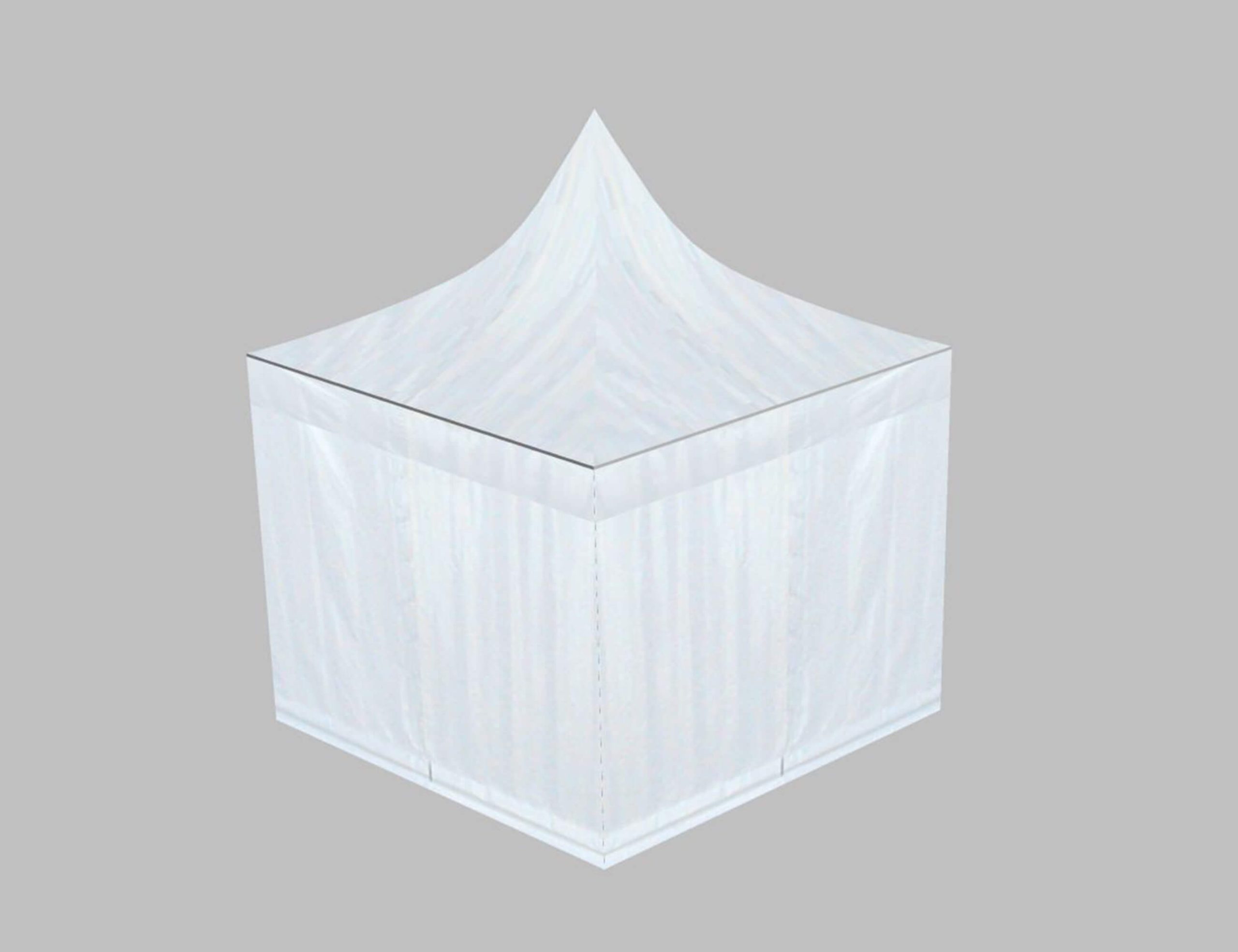

PVO3.1 Pavilion Marquee: 3m x 3m 2.4m Side Height Pagoda

Short Description

The main structure of the marquee comprises anodised extruded aluminium profiles. The purlins across the eaves and the roof steelwork have quick assembly push fit connectors.

Dimensions (mm)

Span Width

3000mm

Eave Height

2370mm

Ridge Height

3770mm

Description

The main structure of the marquee comprises anodised extruded aluminium profiles. The purlins across the eaves and the roof steelwork have quick assembly push fit connectors.

The basic Pavilion/Pagoda frame is 3m x 3m square, two or more frames can be joined together by the means of a PVC gutter and infill panels.
The marquee framework can either be erected straight on the ground using the included steel footplates or on our Hoecker flooring system.
The structure is mostly assembled at ground level, so no dangerous roof work is involved!
The purlins have slot tracks for the PVC sheet keder edges to be inserted, thus resulting in a very tight and secure join between the framework and the PVC sheet.
Side sheeting / walls: Keder edges, keder tabs on the top edge, centre laced (dutch lacing), white PVC as standard. Coloured PVC available on request, wide range of colours available.
NO allowance has been made for the effects of snow. Snow must be cleared from the roof regularly or a constant temperature of 12 degrees C must be maintained at the ridge point.

Specification

Please find the technical specification details below

PVC Tensioning
Threaded tensioner in roof peak
PVC Wall Options
One Piece, Centre Laced, Windowed, Panoramic
Structural Width
3000mm x 3000mm square
Span Width
3000mm
Roof Pitch
Peaked roof
PVC Roof Options
Plain White, Clear
Ridge Height
3770mm
PVC Spec
650g m2, Anti Mould, Low Wick, UV Resistant
Purlin Profile
48mm x 89mm 2 track
Steel Spec.
Hot Dip Galvanised Steel Inserts
Longest Component
3000mm (eave purlin)
Ground Fixing
500mm Stakes, Anchor Bolts, Weights
Frame & PVC
204kg
PVC Fire Rating
BS, DIN & M2 Standard
Eave Height
2370mm
PVC Colour
White as standard, others available upon request
Aluminium Profile
48mm x 89mm 2 track
