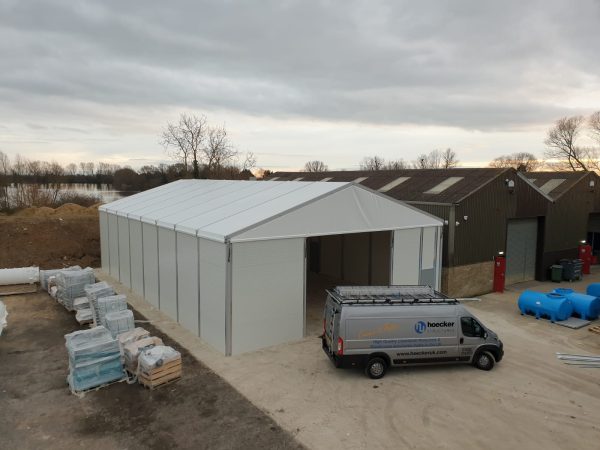

TS12-173 Temporary Warehouse: 12m Wide 4.5m Side Height Clear Span Warehouse Marquee

Short Description

The main structure of the warehouse comprises anodised extruded aluminium profiles. The rafters and uprights form the span across the ridge and eaves with quick assembly hot dip galvanised steel push fit connections.

Dimensions (mm)

Span Width

12000mm

Eave Height

4500mm

Ridge Height

6490mm

Description

The main structure of the warehouse comprises anodised extruded aluminium profiles. The rafters and uprights form the span across the ridge and eaves with quick assembly hot dip galvanised steel push fit connections.

The basic unit is 7.5 or 10m long, with wind bracing bays at each end. This can be added in one bay sections, and can thus be extended to any length as required. In the case of any length over 20m an additional set of wind bracing parts are required.
Maximum spacing between wind bracing bays : 6 bays.
The structure framework is erected on steel footplates and the structure is assembled from ground level upwards, so no dangerous roof work is involved!
The rafters have keder tracks for the PVC sheet keder edges to be inserted, thus resulting in a very tight and secure join between the framework and the PVC sheet.

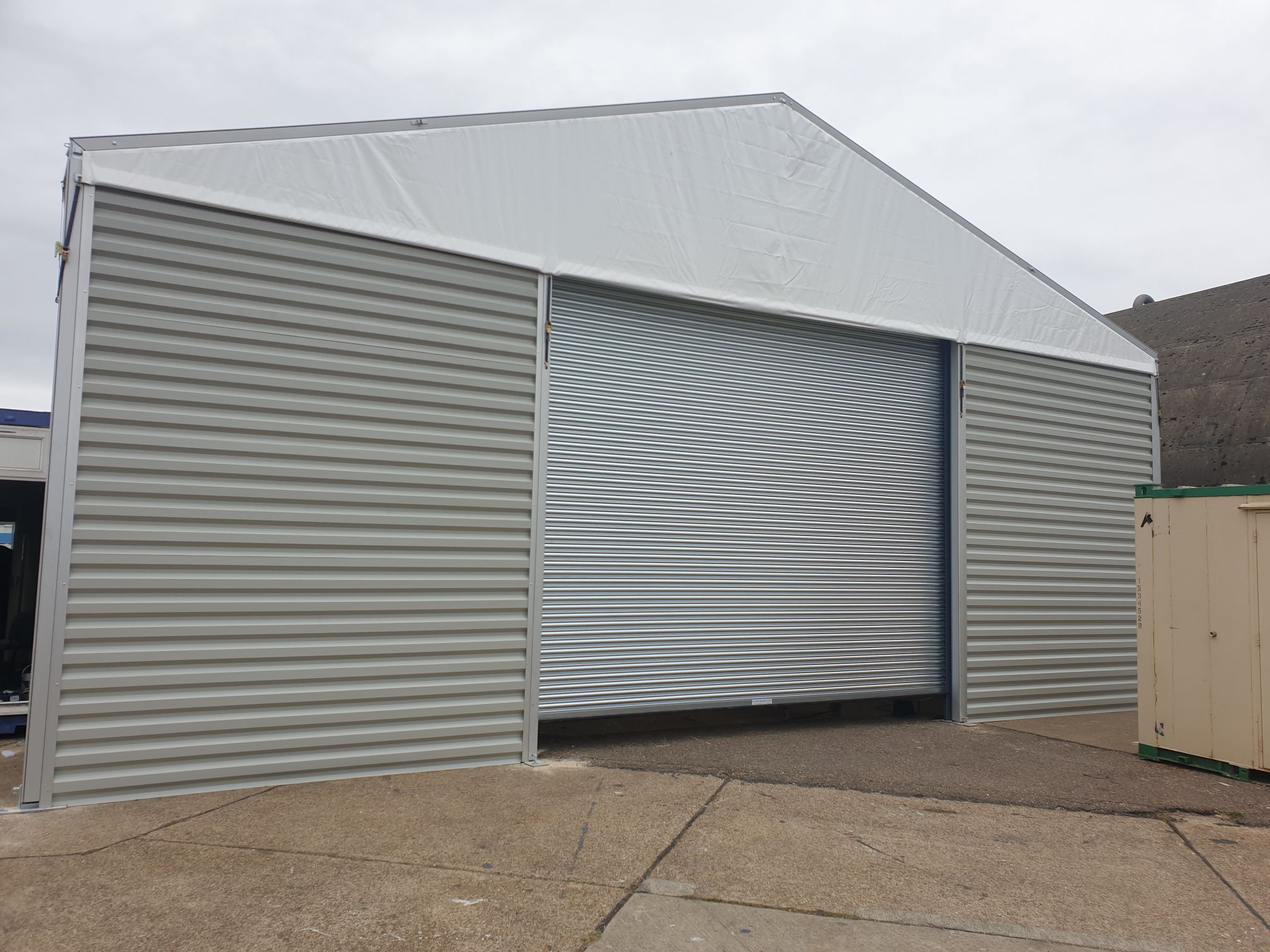

Side wall options: One piece roof and wall PVC cover, uPVC Planks or steel walling.
Many covering options are available from the simplest PVC covers with curtain style doors through to double skin roofs with hard walling, roller shutter doors and personnel doors for security.
The warehouse can be supplied with tested structural calculations. According to structural calculations it is stable in structure to BS6399 pt2 (Wind) & BSEN 1999 Eurocode 9. Design of aluminium structures.

Specification

Please find the technical specification details below

Span Width
12000mm
Eave Height
4500mm
Ridge Height
6490mm
Longest Component
6730mm (Rafter with insert)
Roof Pitch
18°
Aluminium Profile
173mm x 80mm 4 track
Wind Speed Rating
70mph, 31m/s, 113km/h
Snow Loading
0.25kn m2
Purlin Profile
62mm x 62mm 2 track & 60mm x 60mm
Steel Spec.
Hot Dip Galvanised Steel Inserts
Bay Spacing
2.5m
Frame Bracing
Roof Wires with Diagonal Bar or Wall Wires
Ground Fixing
850mm Stakes, Anchor Bolts, Weights
Structural Calculations
BS EN 1999 Eurocode 9, BS6399 pt2 (wind)
PVC Spec
650g m2, Anti Mould, Low Wick, UV Resistant
PVC Fire Rating
BS, DIN & M2 Standard
PVC Colour
White as standard, others available upon request
PVC Roof Options
Single or double skin
PVC Gable Options
Single or double skin
PVC Wall Options
PVC, uPVC Planks or corrugated steel walling
PVC Tensioning
Bar tension or push down tension
