E15-173 Clear Span Marquee: 15m Wide, 5m Bay, 2.4m Side Height Event Structure

Short Description

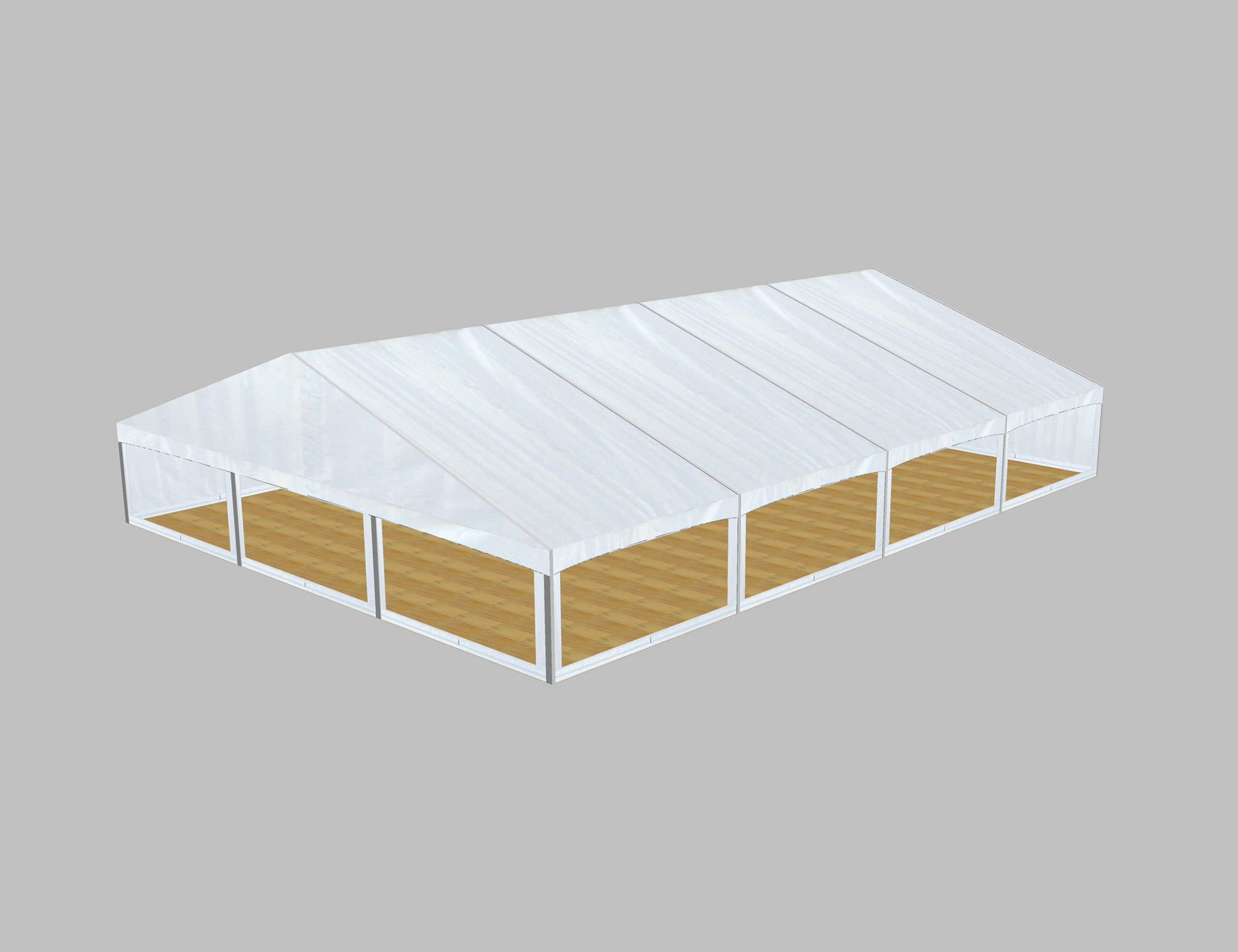

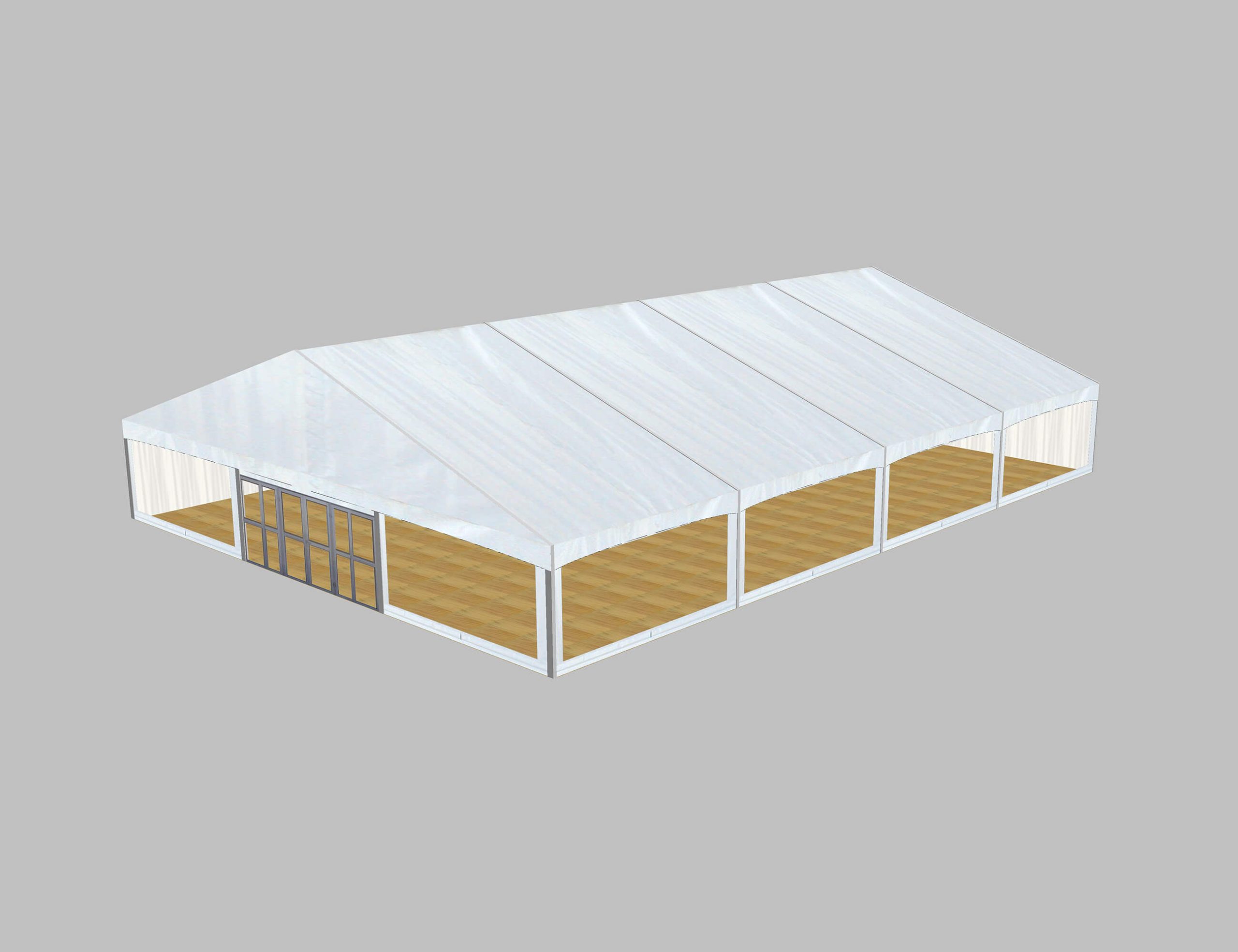

The main structure of the marquee comprises anodised extruded aluminium profiles. The rafters spaced across the ridge and eaves have quick assembly push fit connections.

Dimensions (mm)

Span Width

15000mm

Eave Height

2430mm

Ridge Height

4920mm

Description

The main structure of the marquee comprises anodised extruded aluminium profiles. The rafters spaced across the ridge and eaves have quick assembly push fit connections.

The basic unit is 6m long, with wind bracing bays at each end. This can be added to in sections of one bay, and can thus be extended to any length as required. In the case of any length over 24m an additional braced bay would be required.
Maximum spacing between wind bracing bars : 6 bays.
The marquee framework can either be erected on steel footplates or on hoecker flooring systems. The anchoring method depends upon structural calculations. The structure is assembled from ground level upwards, so no dangerous roof work is involved!
The rafters have keder tracks for the PVC sheet keder edges to be inserted, thus resulting in a very tight and secure join between the framework and the PVC sheet.

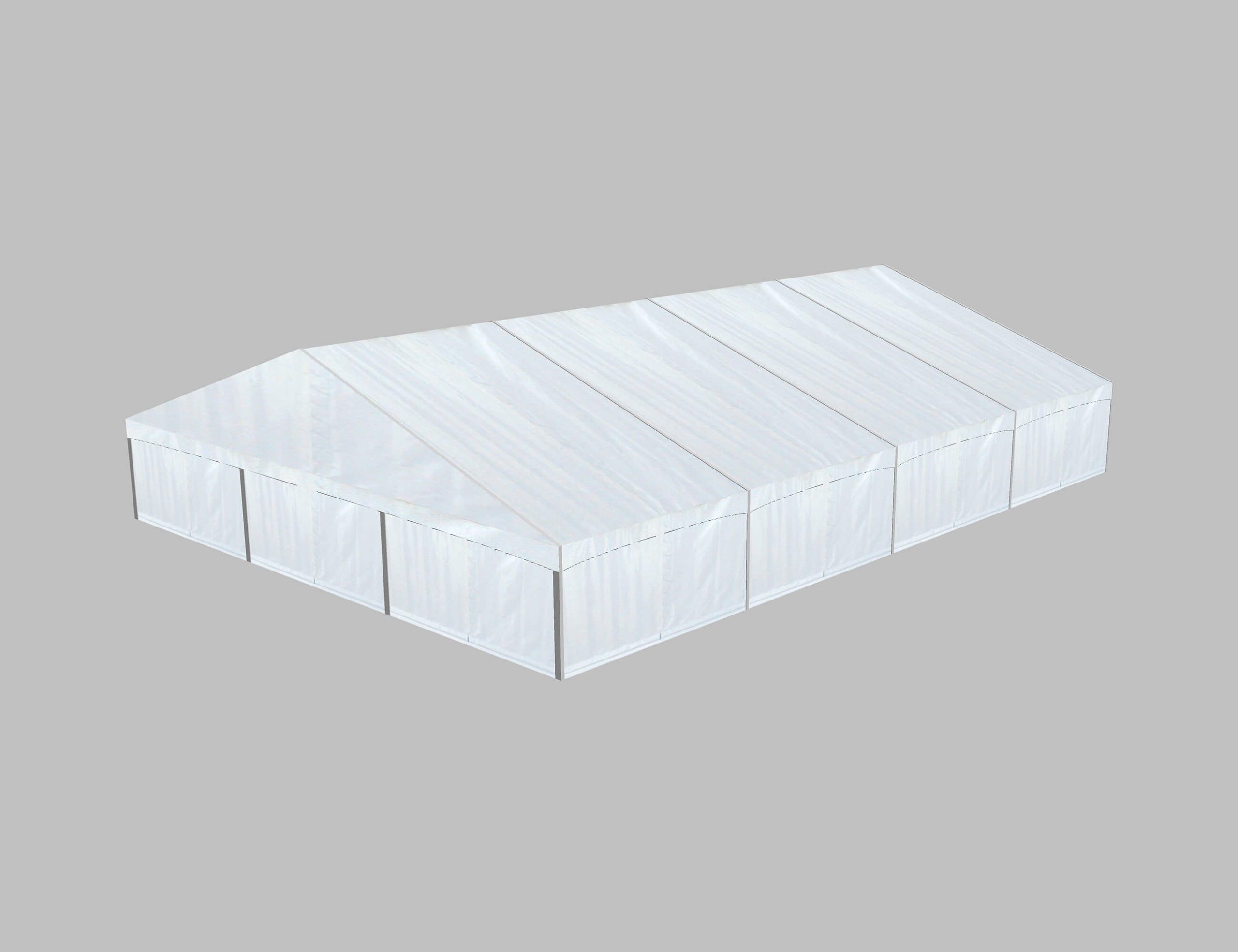

Walls: Keder edges, sliders at top edge for keder tracked eave and gable purlins, laced at centre, white as standard, other colours available upon request.
The marquee can be supplied with tested structural calculations. According to structural calculations it is stable in structure to BS6399 pt2 (Wind) & BSEN 1999 Eurocode 9. Design of aluminium structures.
Snow must be cleared from the roof regularly or a constant temperature of 12 degrees C must be maintained at the ridge point.

Specification

Please find the technical specification details below

Span Width
15000mm
Eave Height
2430mm
Ridge Height
4920mm
Longest Component
8280mm (Rafter with insert)
Roof Pitch
18°
Aluminium Profile
173mm x 80mm 4 track
Wind Speed Rating
56mph, 25m/s, 90km/h
Snow Loading
0.2kn m2 Not including internal hanging loads
Purlin Profile
120mm x 80mm & 60mm x 60mm
Steel Spec.
Hot Dip Galvanised Steel Inserts
Bay Spacing
5m
Frame Bracing
Roof Wires with Diagonal Bar or Portal Brace
Ground Fixing
850mm Stakes, Anchor Bolts, Weights
Maximum suspended weight per span (A-frame)
85kg from a single point or 170kg if spread evenly across the span from two points.
Structural Calculations
BS EN 1999 Eurocode 9, BS6399 pt2 (wind)
PVC Spec
650g m2, Anti Mould, Low Wick, UV Resistant
PVC Colour
White as standard, others available upon request
PVC Fire Rating
BS, DIN & M2 Standard
PVC Roof Options
Plain White, Clear
PVC Gable Options
Plain White (one piece), Clear (one piece)
PVC Wall Options
One Piece, Centre Laced, Windowed, Panoramic
PVC Tensioning
Bar tension with ratchet straps
