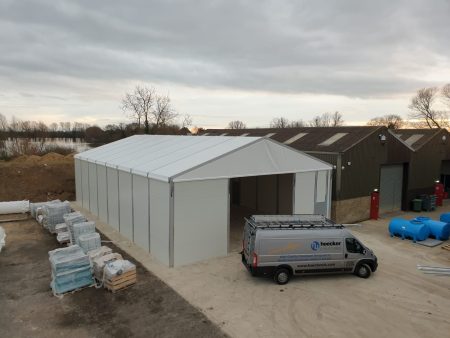

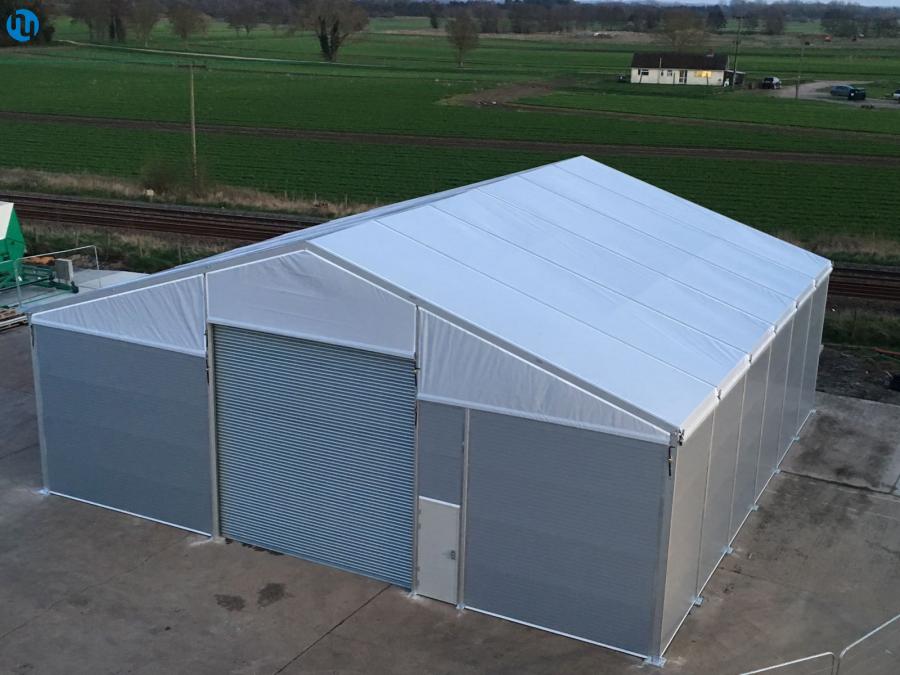

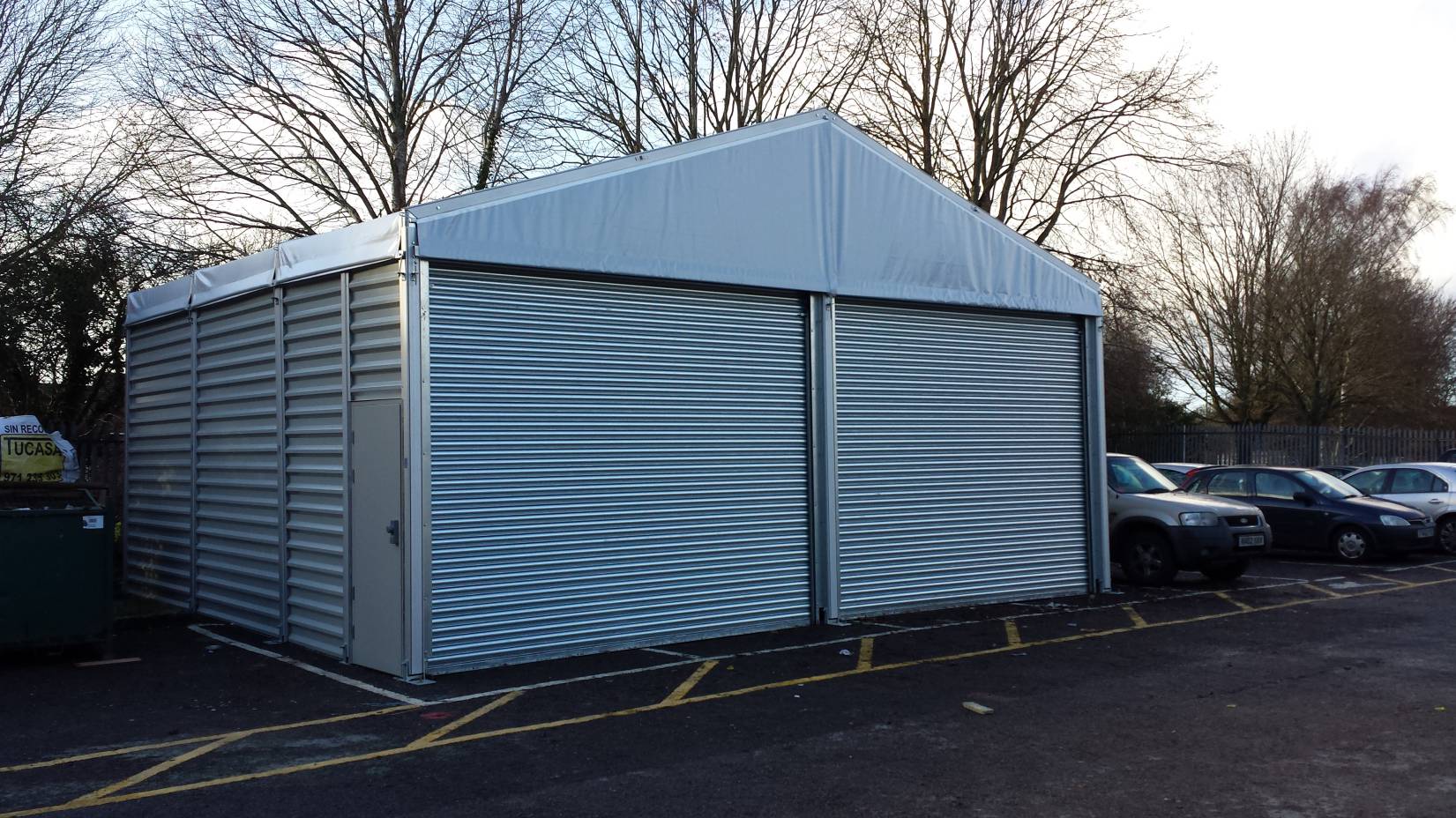

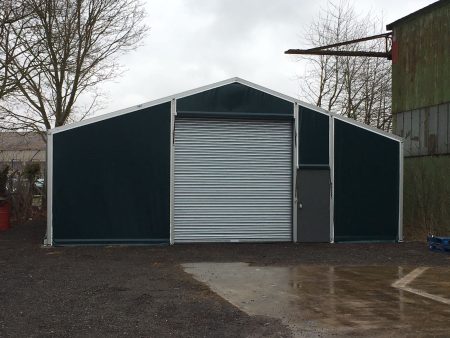

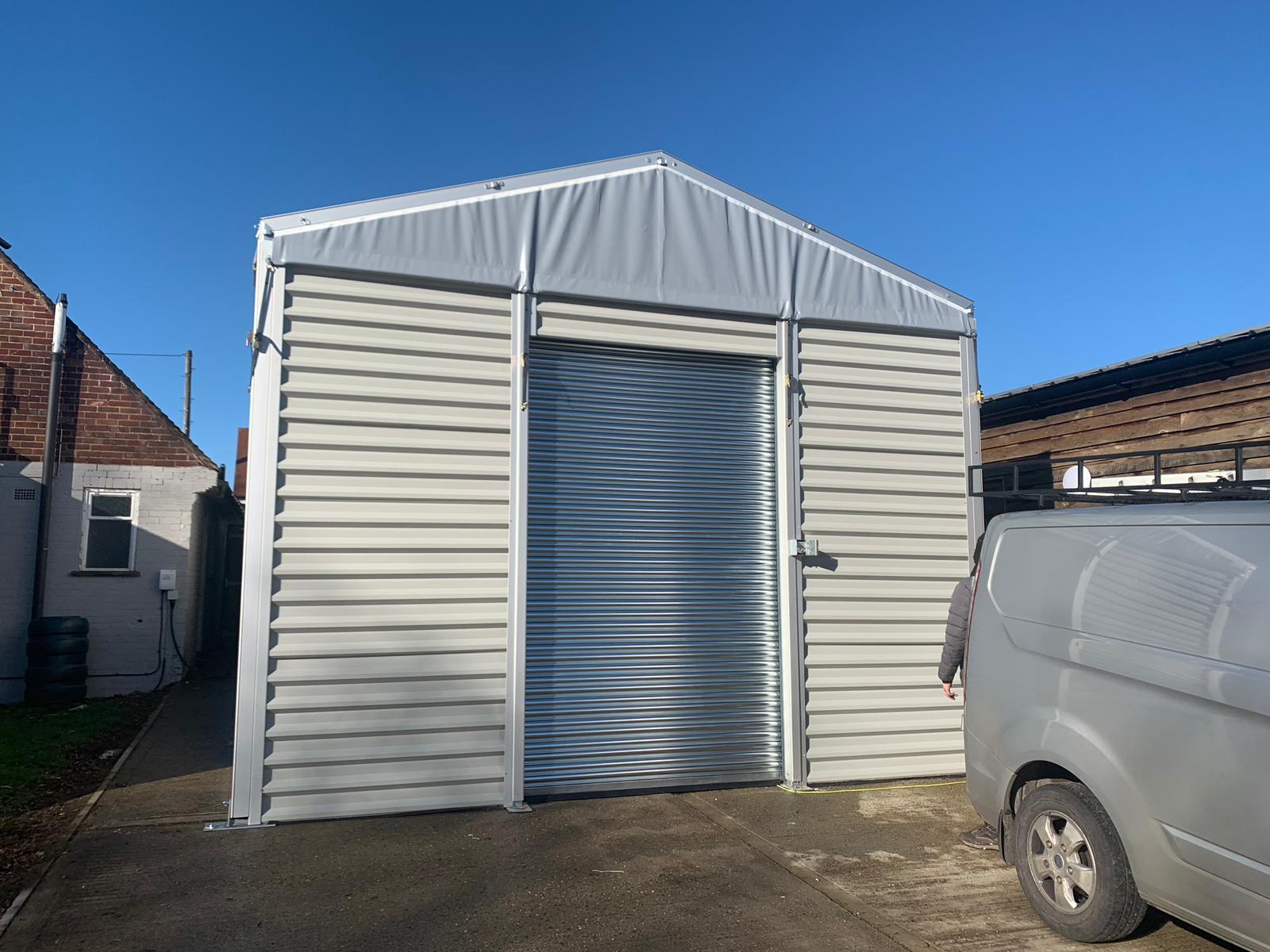

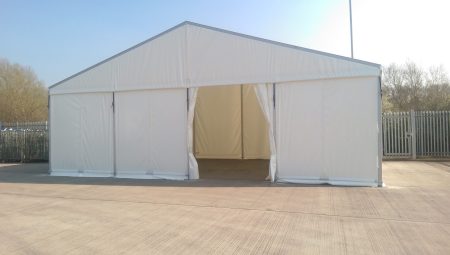

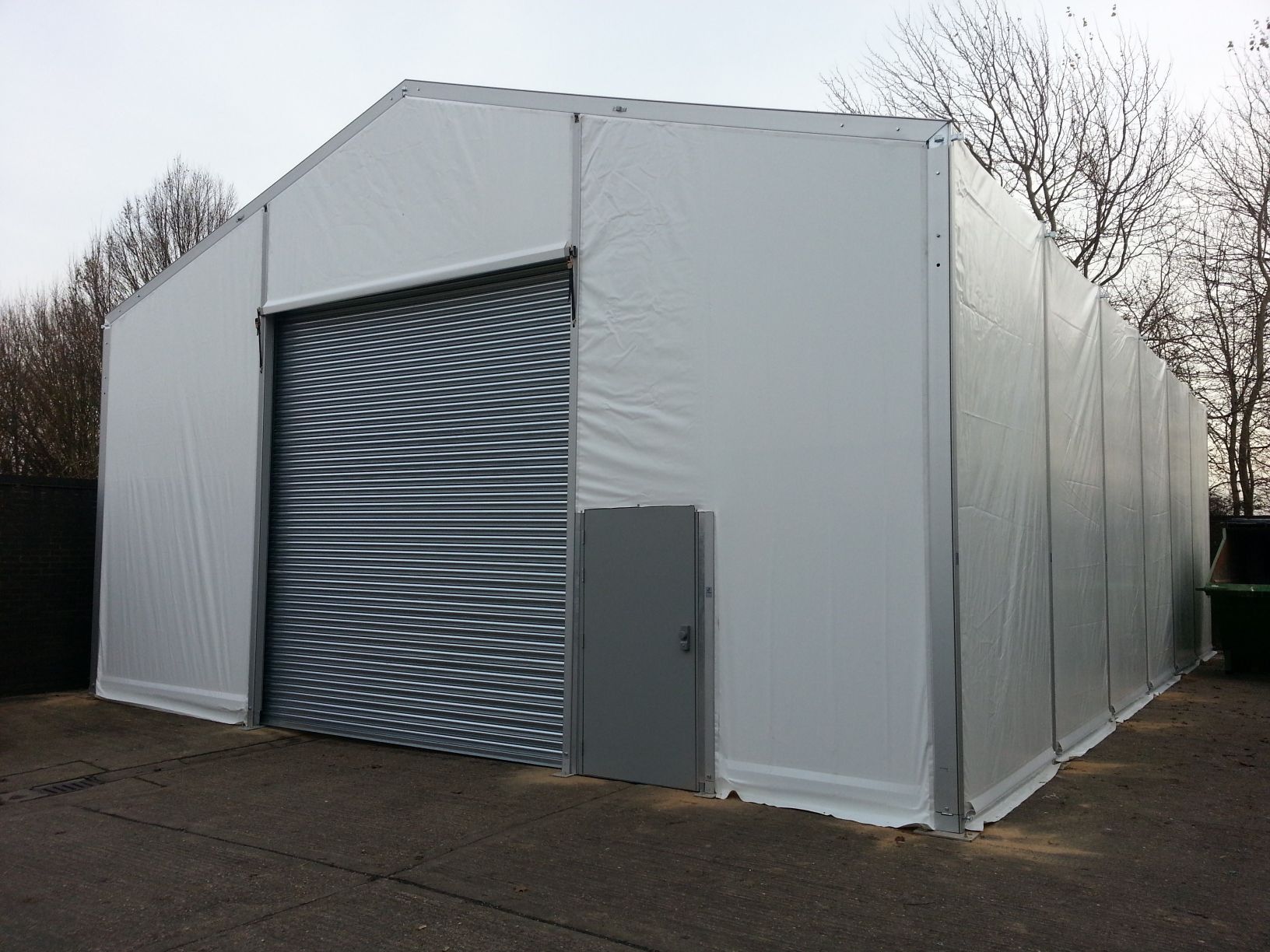

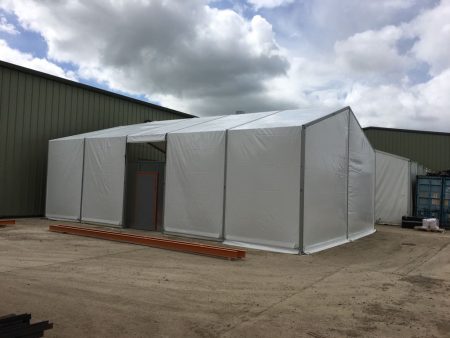

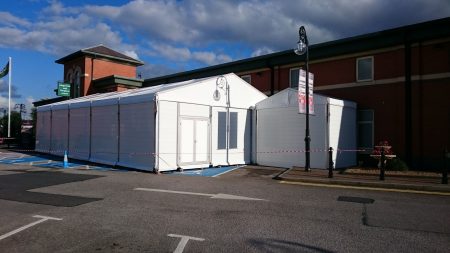

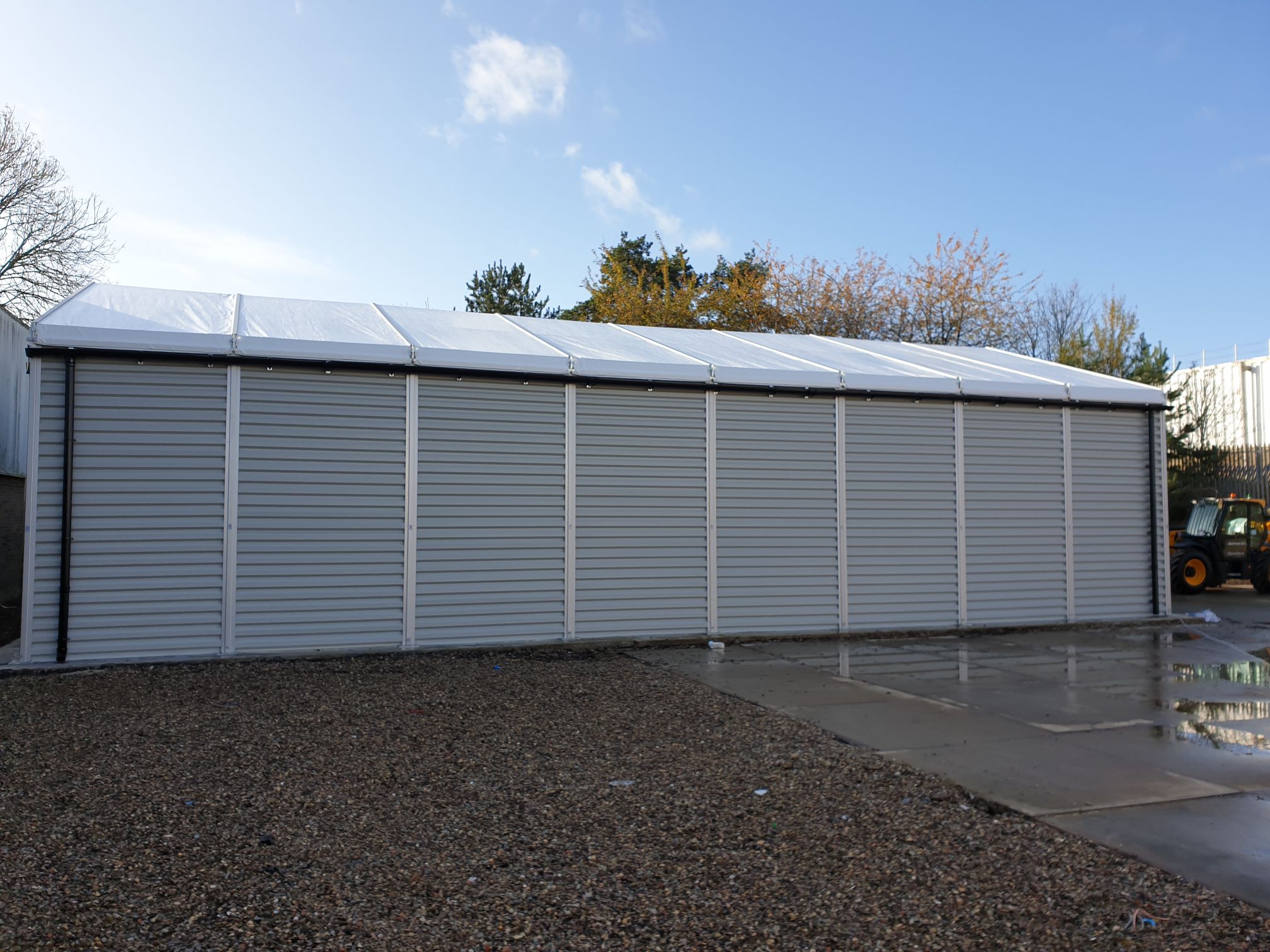

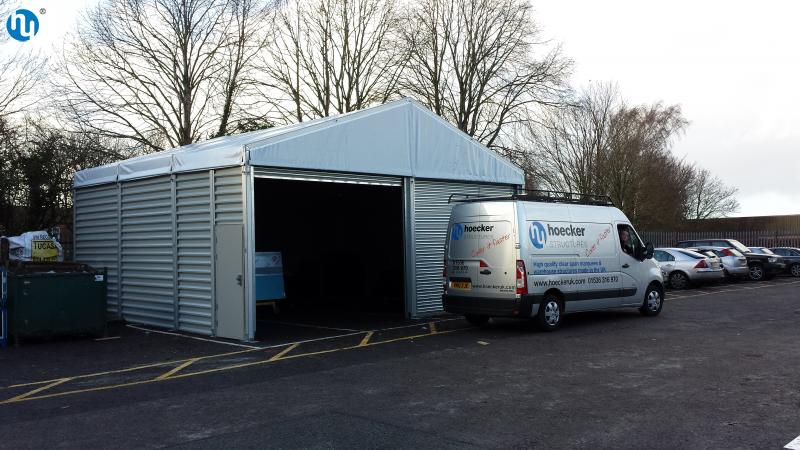

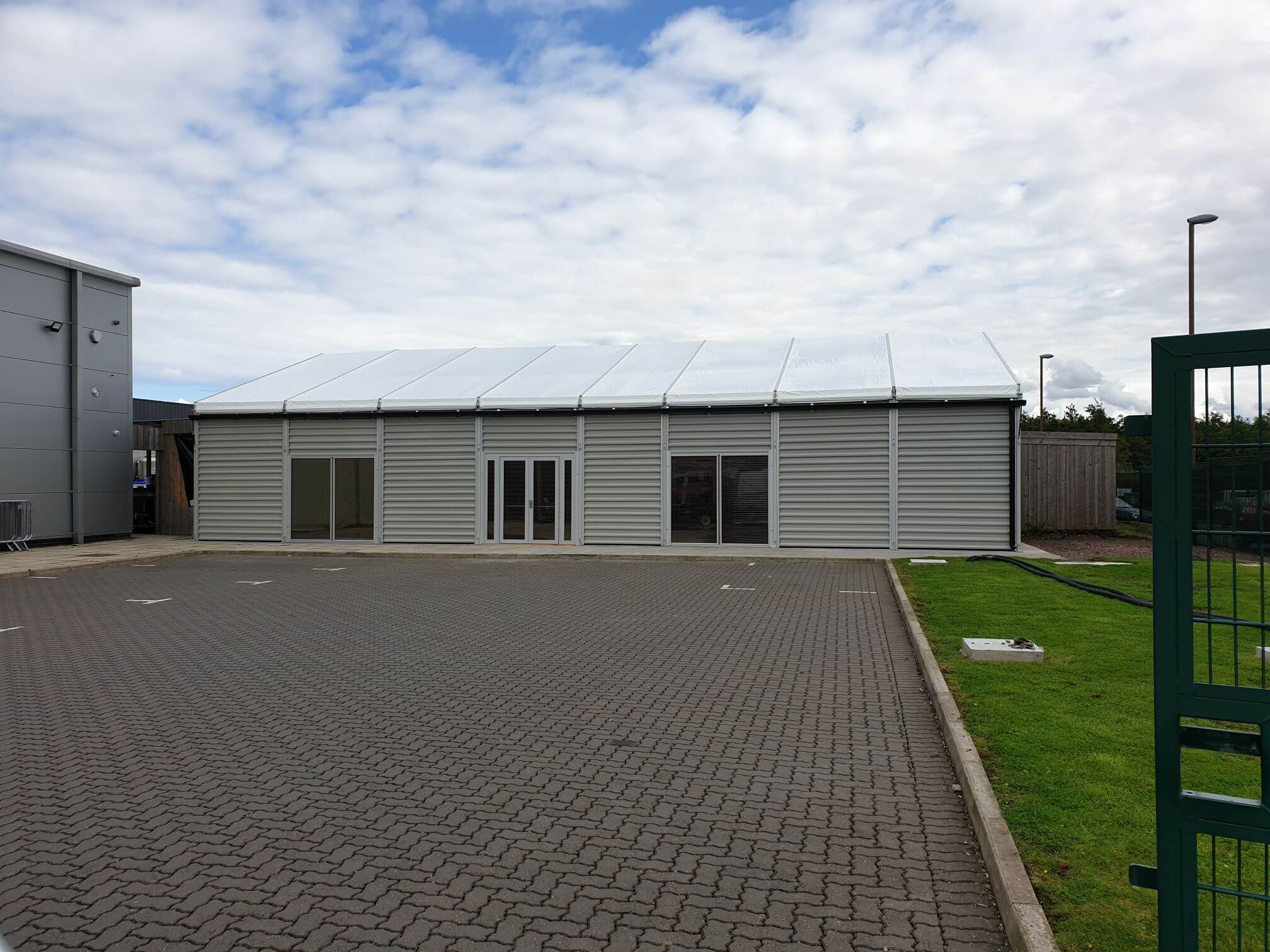

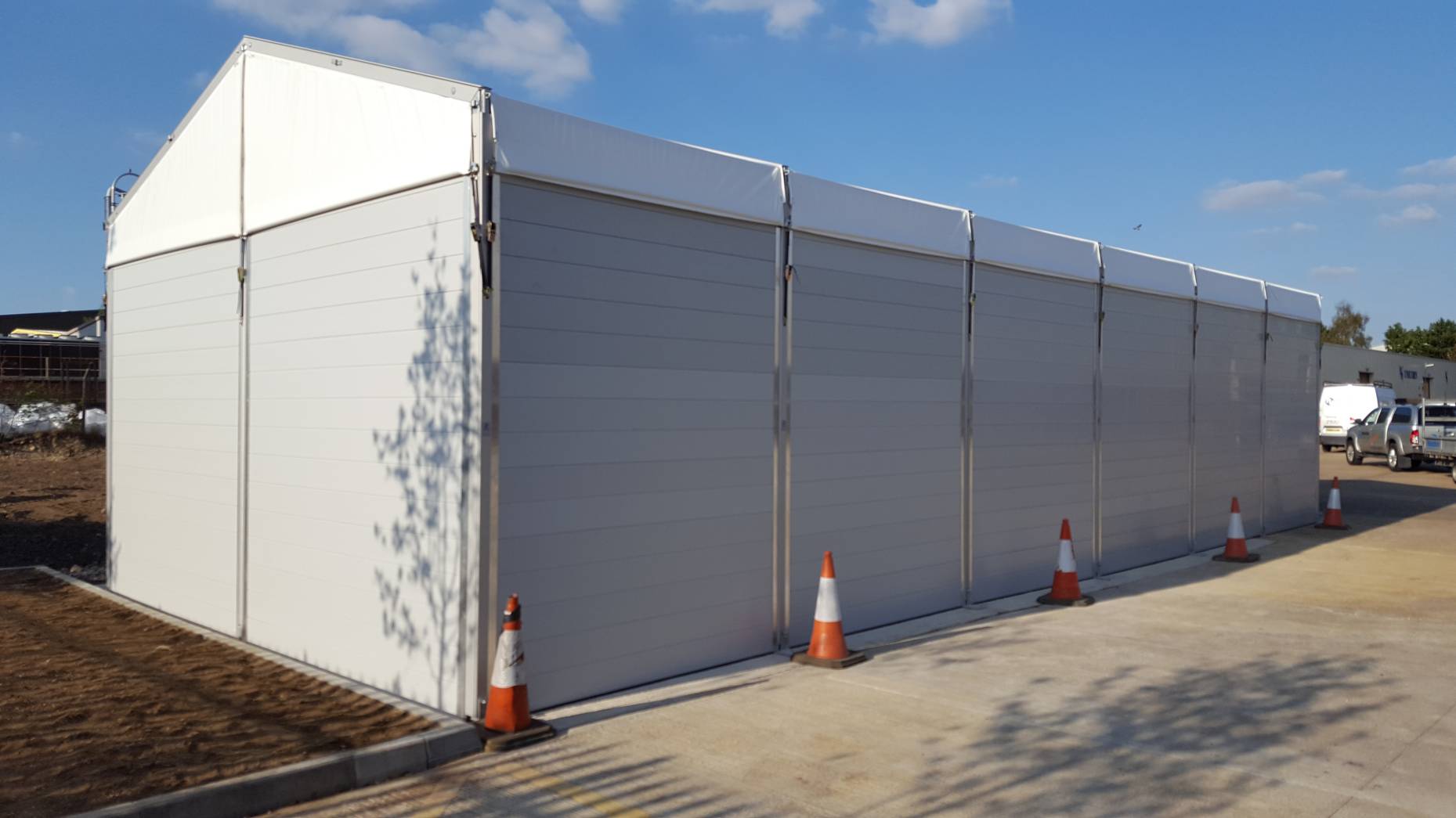

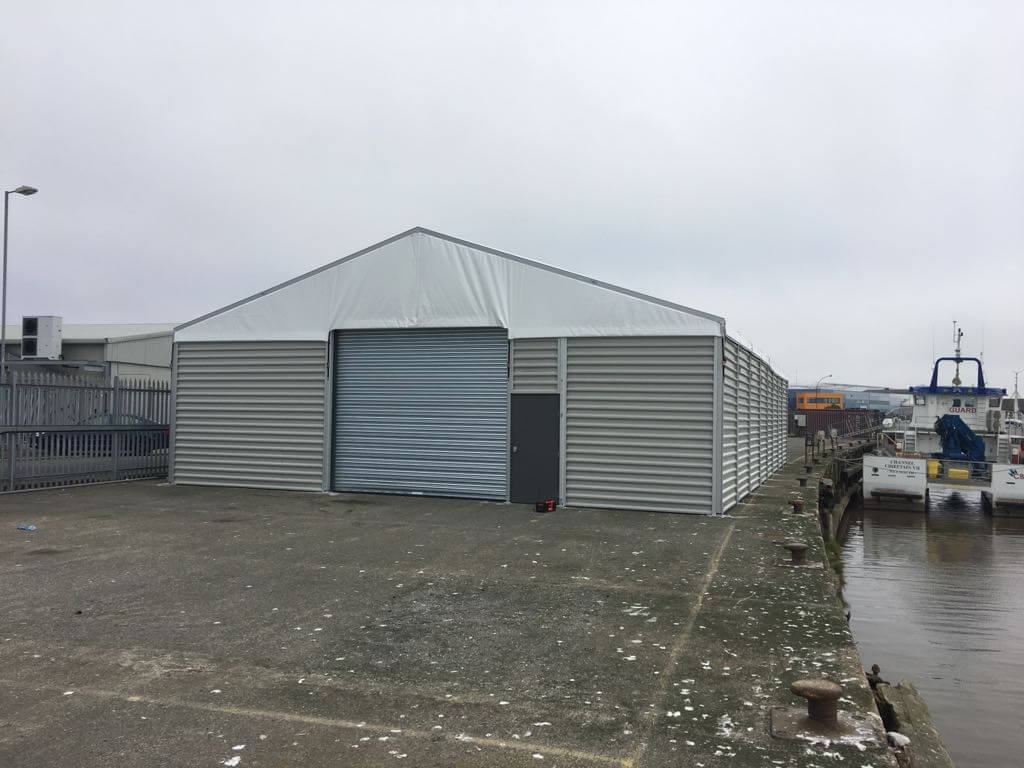

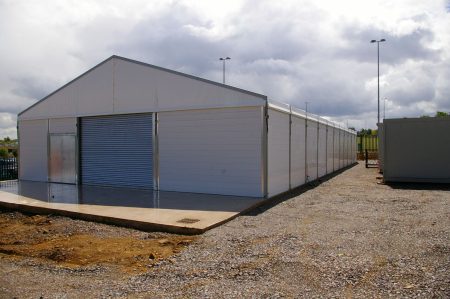

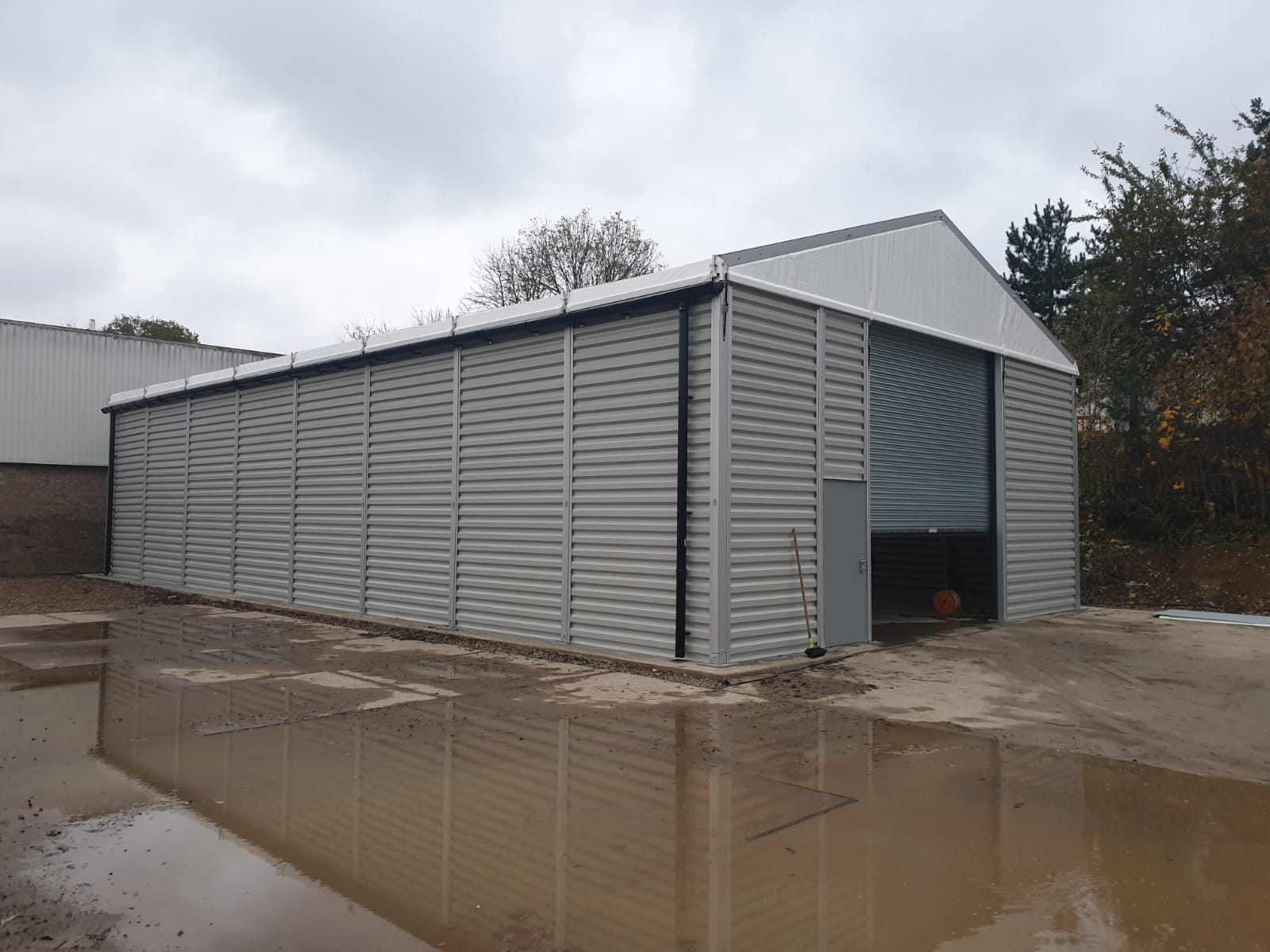

Our clear span warehouse structures are available in sizes from 6m wide up to 15m wide. Basic structures start at 5m long (2 bays) and can be extended to any length using 2.5m extension bays. Our warehouse structures are heavy duty, extremely strong and quick to assemble due to their clever fast assembly design.
Hoecker Warehouse structures are fast to assemble, the connections for the aluminium roof spans are push fit design from galvanised steel then locked by pin and clip, forming a modular design. The frame is assembled flat on the ground. It is then hinged into it’s vertical position and fixed into place, preventing any need for potentially dangerous temporary ties or roof work.
Our warehouse system is designed to use 2.5m bays. The basic structure length is 5m long (2 bays), and can be extended to any length using 2.5m extension bays to form the required length, giving flexibility and choice.
Our warehouse structures are manufactured using 6082 T6 aluminium, this grade of aluminium is referred to as "structural alloy" and is commonly used in applications like bridge building and cranes. All joining connections are made from heavy duty galvanised steel. All PVC covers are made from a heady duty 650g per square metre material and is fire retardant, mould inhibited and lacquered.
Our warehouse structures can be supplied with structural calculations. According to structural calculations it is stable in structure to BS EN 1991-1-4:200+A1:2010 [wind], BS EN 13782:2015, Temporary Structures, - Tents Safety and BS EN 1999 Eurocode 9. Design of Aluminium Structures. These structures are calculated for 70mph winds and snow loading of 0.25kn or 0.75kn per m2 depending on your requirements.
If you have a need for a special design or have an unusual shaped space you would like covering and our standard products just doesn't fit the bill, then please just get in touch. We have in house design capabilities and regularly design and manufacture one off special structures for our clients. With nearly 100 years of combined experience within the business you are in safe hands.
